The Ancient Roman Abacus: A Tool for Calculation and Commerce
The Roman Empire was known for its advancements in engineering, architecture, and military tactics, but it also made significant contributions to the world of mathematics.
One of the tools that the Romans used for calculation was the abacus, a portable device that was used for thousands of years before the advent of modern calculators (although it is still in use today in some parts of the world).

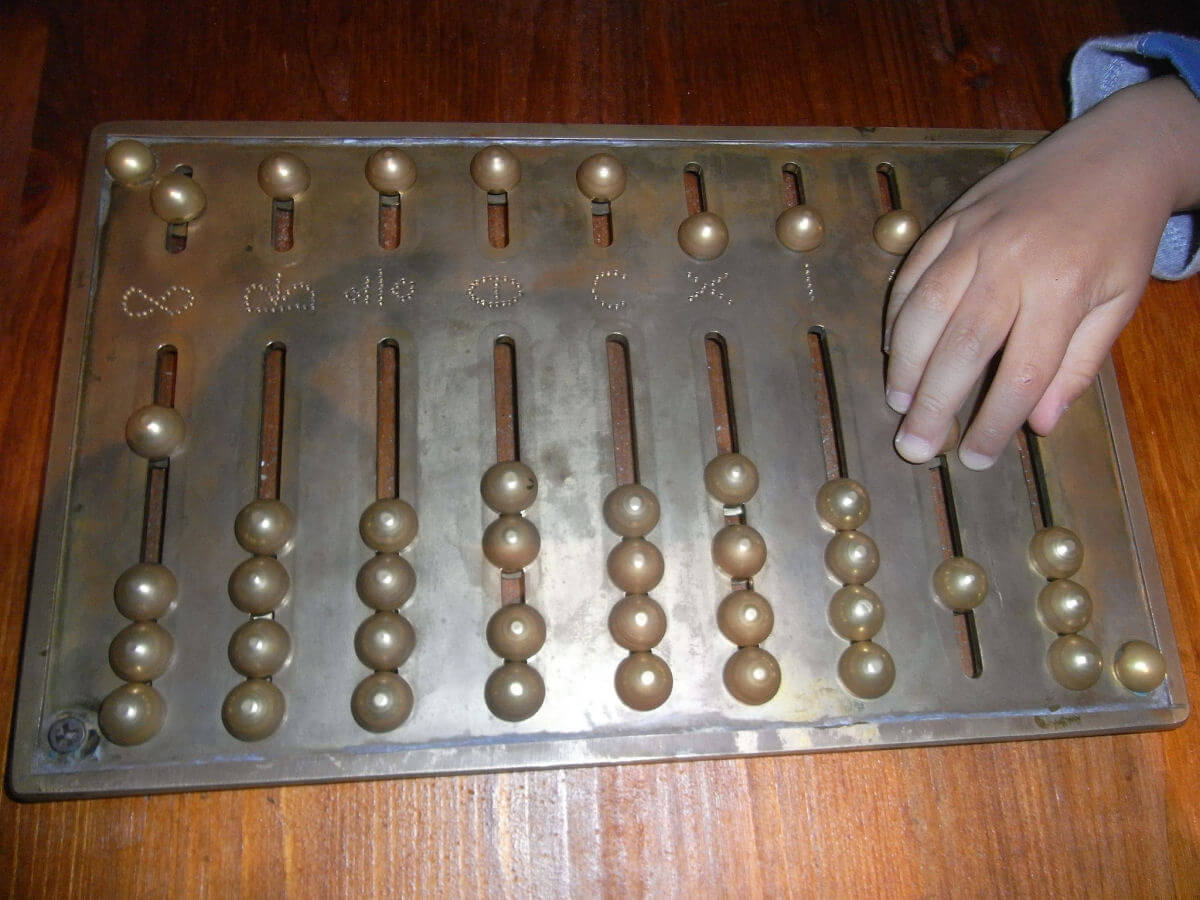

Boboworkplace, CC BY-SA 3.0, via Wikimedia Commons
In this article, we will explore the history and use of the Roman abacus, its design and construction, and its role in commerce and Roman daily life.
History and Use
As stated in the opening section above, the abacus is an ancient calculating device that has been used in various forms throughout history. The word "abacus" comes from the Greek word "abax," which means "board" or "slab." The earliest abaci were likely made from sand or pebbles arranged on a flat surface, but over time, more sophisticated designs were developed, including the Roman abacus.
The Romans used an abacus for basic arithmetic operations such as addition, subtraction, multiplication, and division. It was an essential tool for merchants, bankers, tax collectors, and anybody else who needed to perform calculations quickly and accurately. The Roman abacus was also used by children to learn and practice mathematics.
Design and Construction
A typical Roman abacus consisted of a rectangular frame made of wood or metal with horizontal grooves or wires. The wires were arranged in pairs, and each pair represented a different place value, such as units, tens, hundreds, and so on.
The wires in each pair were separated by a distance that represented the value of the digit they represented, such as one unit or five units. For example, in the units place, one wire might represent one unit, while the other wire represented five units.
Beads or stones were placed on the wires to represent numbers. The position of the beads on the wires indicated their place value, with the rightmost bead representing the units place, the next bead to the left representing the tens place, and so on. The beads could be moved back and forth on the wires to perform calculations.
The Roman abacus also had a horizontal divider that separated the frame into two sections. The section above the divider represented positive numbers, while the section below the divider represented negative numbers. This feature made it possible to perform both addition and subtraction on the abacus.
The Role of the Roman Abacus in Commerce and Daily Life
The Roman abacus played a significant role in commerce, trade and daily life in ancient Rome. It was used by merchants to calculate the cost of goods and services in relation to buying, selling, and bartering goods, and by bankers and money lenders to keep track of accounts and transactions.
The use of the abacus allowed for more efficient and accurate calculations, which in turn facilitated trade and commerce throughout the Roman Empire.
The abacus was also used in taxation, as it made it easier to calculate taxes based on the value of goods and property.
The Roman abacus was also an important educational tool. Students learned how to use the abacus to perform calculations and solve problems, and it was an essential part of the Roman educational system. The abacus was also used by teachers to demonstrate mathematical concepts and principles.
The use of the abacus allowed students to visualize and understand the concepts of place value and negative numbers, which were essential to more advanced mathematical concepts.
The widespread use of the abacus in Roman society likely contributed to a more numerate and mathematically proficient population. The abacus also played a role in the development of Roman technology and engineering, as the principles of the abacus were used in the design and construction of other mechanical devices.
Mathematical Operations
The Roman abacus was primarily used for basic arithmetic operations, including addition, subtraction, multiplication, and division. Each operation was performed using a different set of movements and manipulations of the beads on the abacus.
The Roman abacus was often used in conjunction with Roman numerals, a numerical system consisting of seven letters representing different values: I, V, X, L, C, D, and M. This system was used in conjunction with the Roman abacus for various mathematical operations. Each bead on the abacus represented a certain value based on the position of the bead, allowing for efficient calculations with Roman numerals.
The abacus was particularly useful for addition and subtraction with Roman numerals, as it allowed for quick and accurate calculation of values. Multiplication and division with Roman numerals were also possible using the abacus, although these operations required more complex methods.
For addition, the user would start by placing the first number on the abacus by sliding the appropriate number of beads to the right on each wire. Then, they would add the second number by sliding the appropriate number of beads to the right on each wire. The result could then be read off by counting the total number of beads in each row.
For subtraction, the user would start by placing the larger number on the abacus and subtracting the smaller number by sliding the appropriate number of beads to the left on each wire. The result could then be read off by counting the total number of beads in each row.
For multiplication, the user would use a different set of beads on the abacus, known as the multiplication beads. These beads were arranged in groups of five, with each group representing a digit from 0 to 9. To perform multiplication, the user would place the two numbers on the abacus and then use the multiplication beads to perform a series of operations, including grouping, carrying, and adding.
For division, the user would also use a different set of beads on the abacus, known as the division beads. These beads were used to keep track of the dividend, divisor, and quotient during the division process.
Evolution Over Time
The design and use of the abacus evolved over time, from the simple sand or pebble arrangements used by early civilizations to the sophisticated frame and wire design of the Roman abacus. Different types of abaci were developed in different regions of the world, each with their own unique design and set of operations.
In the centuries following the decline of the Roman Empire, the use of the abacus declined in Europe and was largely replaced by the Hindu-Arabic numeral system and other forms of written arithmetic. However, the abacus continued to be used in other parts of the world, including China and Japan, where it remained an important tool for commerce and education.
Today, the abacus is still used in some parts of the world, particularly in Asia, as a teaching tool for basic arithmetic skills. It is also used in some fields, such as accounting and finance, as a tool for quick and accurate calculations.

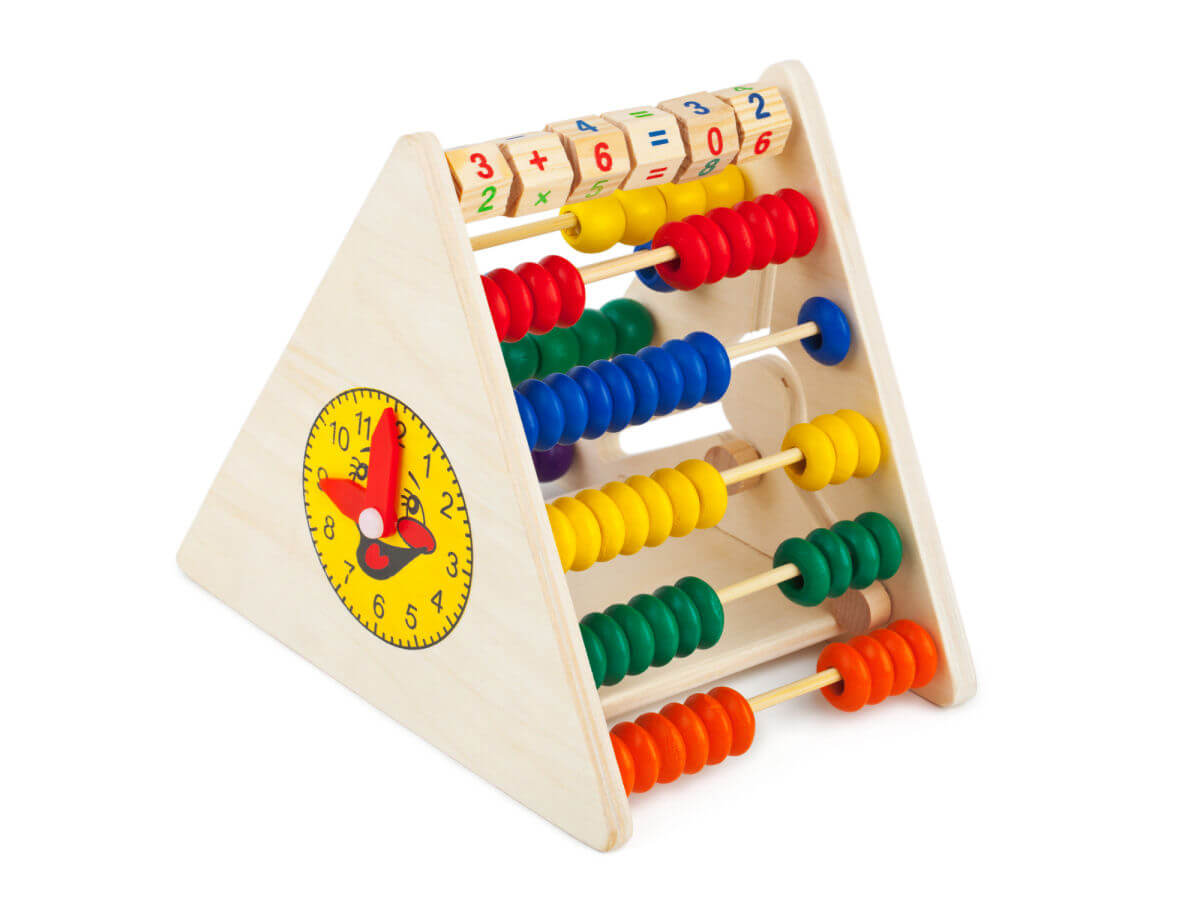

It has also found a new niche as a toy for babies and young children who, even if they are unable to grasp the educational math element of the device, simply enjoying sliding the bead counters forward and back!
Comparison to Other Abacuses (Abaci)

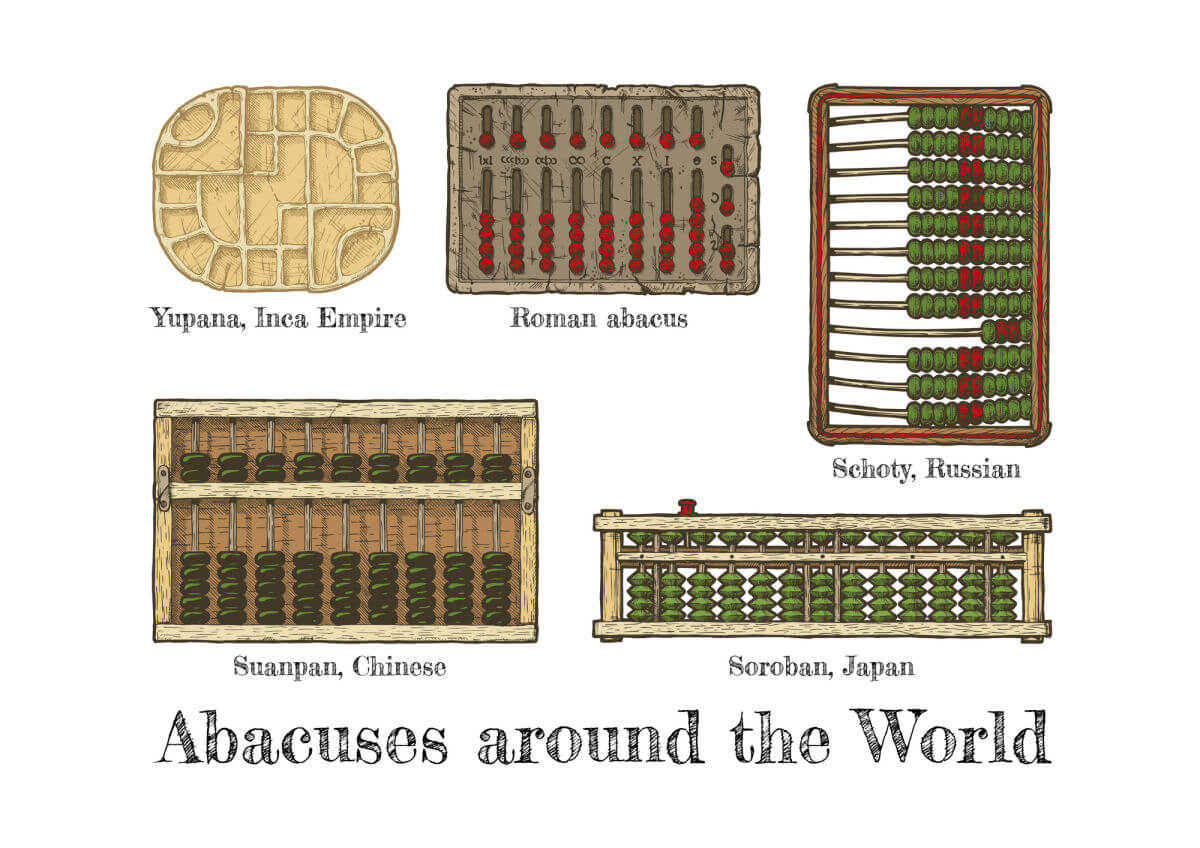

While the Roman abacus is perhaps the most well-known type of abacus in Western culture, there were many other types of abaci used throughout history.
For example, the Chinese abacus, also known as the suanpan, is a rectangular frame with two beads on each wire in the top deck and five beads on each wire in the bottom deck.
The Japanese abacus, or soroban, has one bead on each wire in the top deck and four beads on each wire in the bottom deck.
The Russian abacus, or schoty, has ten beads on each wire, but only the beads in the bottom deck are used for calculation.
Despite these differences in design, all abaci share the basic principle of using a set of beads or other markers to represent numbers and perform arithmetic operations. However, the different designs can make some operations easier or more difficult depending on the specific abacus being used. For example, the Chinese abacus is often considered to be more efficient for multiplication and division, while the Roman abacus is better suited for addition and subtraction.
Conclusion and Legacy
The abacus remained in use in Europe until the invention of the printing press in the 15th century AD, which led to the widespread use of Arabic numerals. The use of the abacus declined with the advent of the Hindu-Arabic numeral system (calculations were now easier to do in the head or by writing numbers down on paper) and the development of mechanical calculators.
However, the abacus is still used today in some parts of the world, particularly in Asia, where it is a popular educational tool and is used in some businesses and industries. The abacus is also used in some cultures as a tool for meditation and relaxation, as it requires concentration and focus to use.
Although the use of the abacus has declined in modern times, it remains an important part of the history of mathematics and a fascinating artifact of ancient technology.
The legacy of the Roman abacus is evident in the modern world, particularly in the development of mechanical calculators and computers. The principles of the abacus, such as the use of place value and the concept of negative numbers, are still fundamental to modern mathematics and are taught to students around the world.
The Roman abacus is also a testament to the ingenuity and creativity of ancient peoples. The development of the abacus, with its sophisticated design and construction, shows that the Romans were not only skilled engineers and builders, but also adept mathematicians and problem solvers.
